Shown with Drawer Front
No Patch Cords required.
No Couplers required.
5 Year Warranty
Made in the USA
LOCK-UP® – A tool that makes Laptops, Notebooks,
Netbooks, Smart Phones, Tablets, Handhelds, and E-Tools more efficient
by providing Communications, Battery Charging, and Security in a Computer
LOCK-UP® cabinets provide safe storage, charging
and communication solutions for commercial and military maintenance technicians
throughout the United States. The drawer has the capability to charge the
laptop battery and connect the laptop to the WLAN through a data communication
connection provided by a patented coiled Cat 6 wiring system with an Ethernet
switch. Laptop Lock-up® is a tool that makes laptops, notebooks, handhelds,
and e-tools more efficient and makes mobile workers better able to complete
their work assignments.
World’s Smartest Laptop Storage System

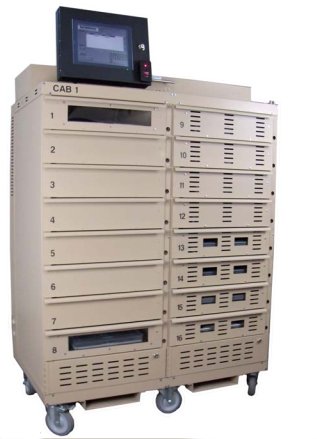

Model Number: LL-16/20-07-CAC
16 Drawer Laptop Security Cabinet CAC Enabled*
(*CAC System cover by manufacturers warranty)
69.5”H X 44”W X 28.00”D with wheels and Monitor
Models available in 8, 10, 16, 18 and 20 drawers.
Riveted and Welded 16 gauge Steel Construction.
Durable Powder Coat Paint Finish. Tan, Stealth
Blue, Black, other colors available
Full drawer width pull handles, with heavy
duty, full extension telescopic drawer slides with precision ball bearings.

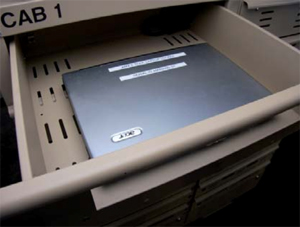

Drawer 17.75”W X 18”D X 5”H. Inspection windows
available at no additional cost.
2 Storage Compartments 17.75”W X 22.00”D X
8.00”H Secure Manual Over ride of the CAC locking system.
Cabinet is equipped with 2 Independent 110
VAC 15 AMP master power supplies which can be operated independently, if
AC power delivered to each drawer by a Patented
Coiled Cord System, a coiled 15 amp, 3 pronged, grounded outlet per drawer;
No mechanical wire management required.
No wire installation required.
No Assembly required
2 Independent synchronized fan systems provide
quite cabinet cooling. Two 113 cfm. synchronized fans per system. Temperature
controlled fan system can be either positive or negative air flow based
on customer need.
Two 2-U Ethernet Switch rack mount locations
in the rear of the cabinet in a key locked Security enclosure, with 2 or
more external RJ 45 connections.
6 heavy duty, non-marking, casters, 6 swivel
and 6 locking.
CAT 6 Data Communication cables delivered
to each drawer by a Patented Coiled Cord System, a coiled CAT 6 cable is
connected to each drawer with a RJ 45 jack and directly to the Ethernet
Switch (Customer to supply Ethernet Switch)
UPS provides power backup for the cooling
fans and Ethernet Switch.(Both covered by manufacturers warranty)
2 Fork Lift/ Tie down tubes, with floor mounting
brackets, for transport and additional security.
Zero Scheduled Maintenance Requirement for
Administer adjustable lag time before a drawer
can be accessed by a second user to allow the eTool to recharge
Item Restrictions – Ability to prevent a particular
eTool from being checked out (example Master eTool)
Electronically Control Item Access
Check Out Time Limit
Overdue Item Warning
Track Administrative changes by the TODO or
Allow user access to “read only” reports
16 Alpha numeric naming convention for eTool
25 Alpha numeric naming convention for drawer
Crib Access Crib Privileges
Report by date range and eTool number displaying
date and time checked out, checked in and employee information
Report by date range and Employee name displaying
date and time checked out, checked in and eTool number.
Report by date range and Cabinet Number displaying
all eTool activity
Report by Cabinet Number displaying current
status of all eTools in cabinet.
190 + Standard reports in the system
(available in 8, 10, 16, 18 and 20 drawers)
ZERO MAINTENANCE, WARRANTY and INSTRUCTIONS
Adobe Acrobat Reader):
LL-8/10-07-CAC - Laptop
Lock-up® 8 drawer cabinet
LL-10/10-07-CAC - Laptop
Lock-up® 10 drawer cabinet
LL-16/20-07-CAC - Laptop
Lock-up® 16 drawer cabinet
LL-18/20-07-CAC - Laptop
Lock-up® 18 drawer cabinet
LL-20/20-07-CAC - Laptop
Lock-up® 20 drawer cabinet
Printable Specification Sheet
further information, please contact us.
Lock-Up® Operating Instructions
Maintenance / Warranty Info.
